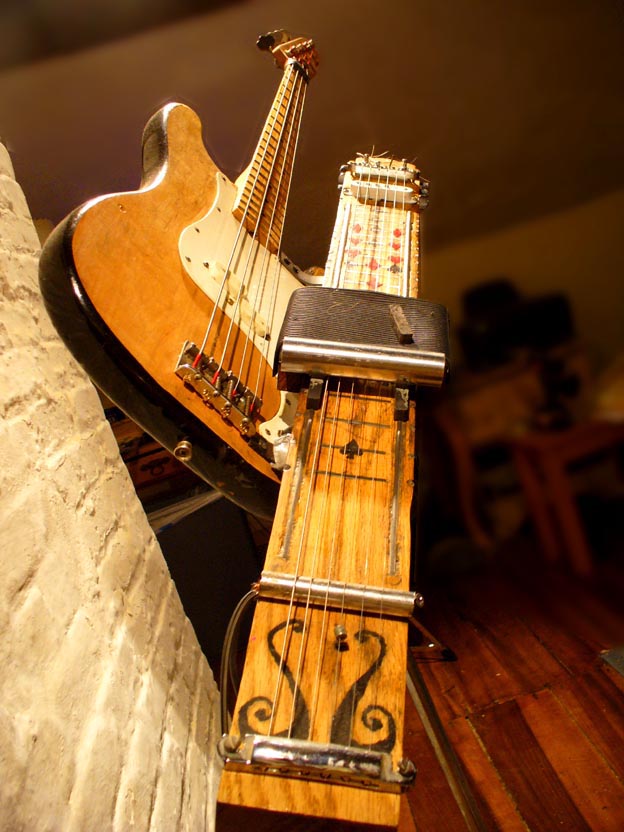

The Egotar is a combination
bass/ pedal steel guitar.
I first got the idea for The
Egotar living in NYC back in the mid 90's. Frustrated with the
shortcomings of midi keyboard element of the
Swiss Army Bass
(emulating slide guitar parts/sounds) I thought to myself .... ,..."why
not commit a truly authentic act of self indulgence?". I set out to
figure out how to play pedal steel guitar with one hand while playing
bass with the other .... I figured that this could done fairly
simply by mounting a slide on a carriage over the strings and reversing
the action of the whole instrument. This would allow me to rest my palm
on the carriage and "fret" and pick with the use of just one hand. At that, I set out to build the a prototype. The original rig was really
clunky but sounded great from the start. I even managed to toss it on
the back of a cart and go play in the subway and made a living for a
summer when my band was on the rocks and my studio slow.
Here's how it works

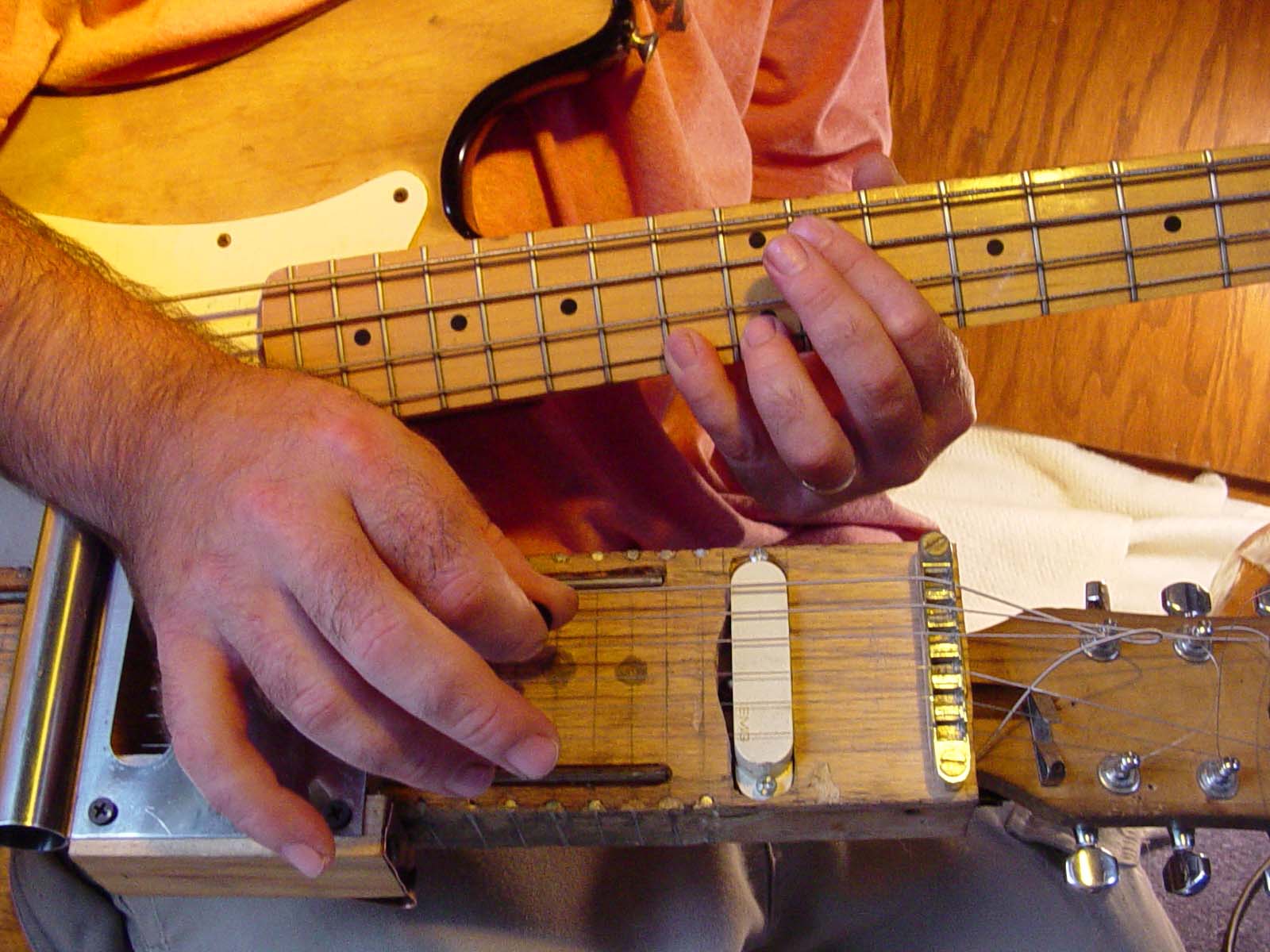

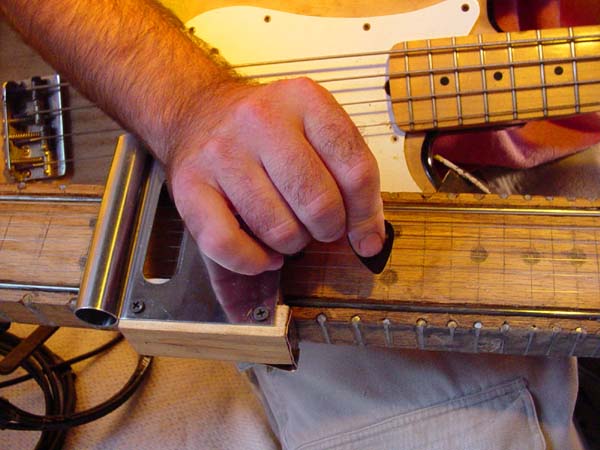

Players right palm rests on lateral sliding carriage enabling single-handed slide guitar.
The bass guitar is
played simultaneously using only the left hand employing a guitar technique
known as hammer-ons .

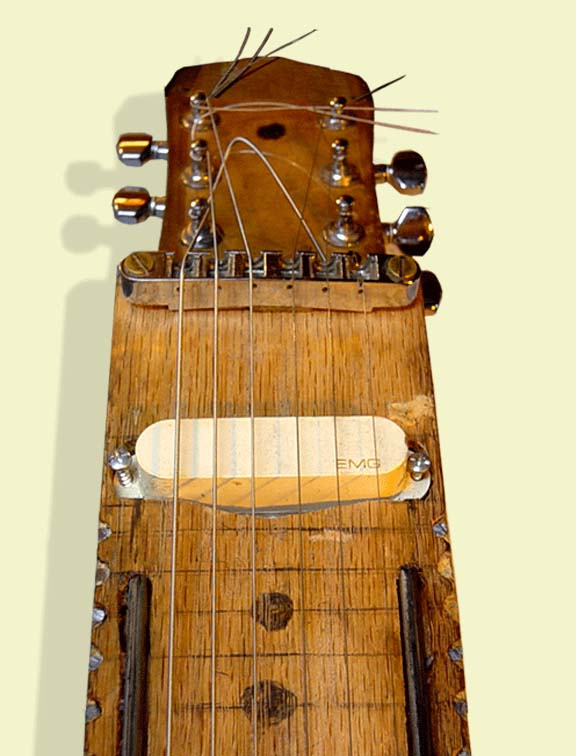

conventional guitars, the pickup is positioned toward the
headstock, thus this instrument's tonal operation is reversed. In other
words.......... it's bass ackwards.

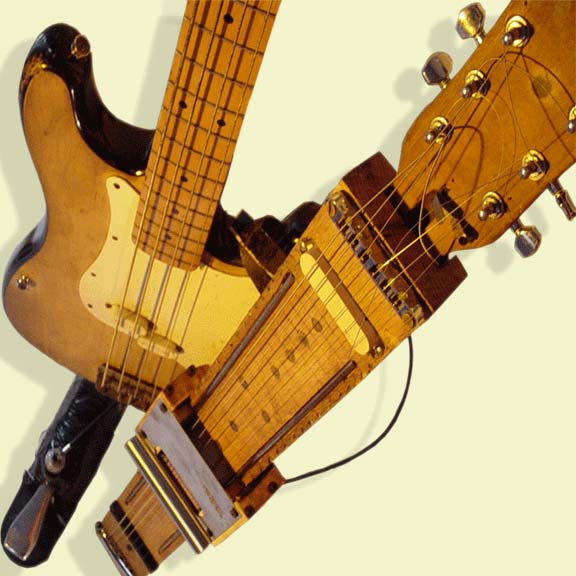

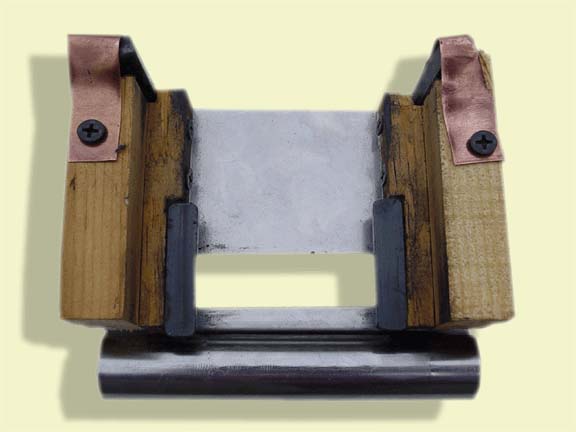

Magnets on the underside of the slide
carriage mechanism address the two long metal inlays on the face of the
instrument keeping the slide in place. A pair of floating magnets addresses
the smaller metal inlays (ok, they're nails) on either side of the
instrument and act somewhat as frets.

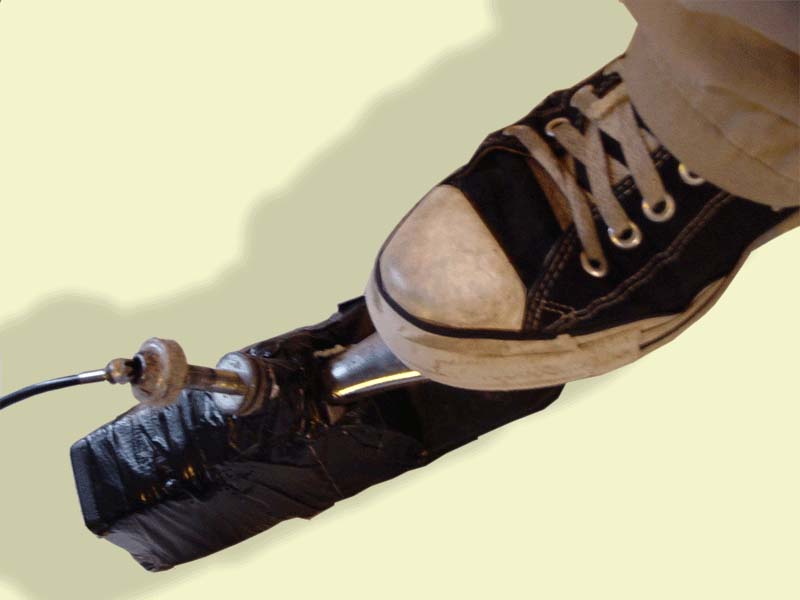

The pedal pulls the cable core which
pulls the "G' string, increasing its pitch to different increments.
The guitar is tuned in 5ths with the
"G" string being tuned to a major second. This allows the
instrument to produce a multi-octave major triad when the pedal is fully
depressed and a minor triad when the pedal is halfway depressed.

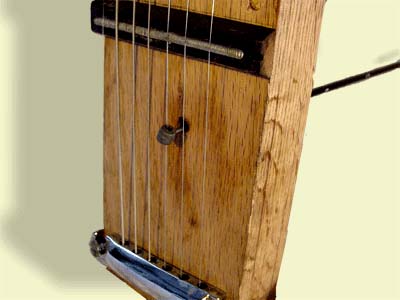

A bicycle cable pulls the
guitar's "G" string directly from below it on the
The original prototype
drawer tracks mounted on either side of the "guitar" with corresponding wheels
on the slide carriage as a means of mounting the carriage over the
strings. I carved indentations into the tracks that jibed with
where the frets would be on a standard guitar. This allowed me to feel the
exact spot where the slide carriage should come to rest for any given note(s). In the
meantime, controlling the pitch of the "G" string in relation to
the other strings evolved from a crude drum pedal design to a more accurate
system that consists of a keyboard pedal, duct tape, and some extraneous
drum hardware. In the second prototype I replaced the draw tracks with
copper pipe (I was on a serious copper pipe tip at the time). The
mechanism functioned much more smoothly but was outdone by the current
prototype described above.
Busking in NYC was an interesting experience to say the least. I had
to overcome a natural aversion to rolling into a park or subway
platform and whipping out this freakizoic instrument and start
playing it. I did the best for the Brooklyn-bound passengers
at the Lafayette/Broadway stop. It's a relatively quiet station with
low central ceilings (cozy almost). I would sit and play this
improvisational, drugged, down-home country, Indian, Asian sounding
stuff, keeping it as relaxing as possible for the crowd heading home
evening. They appreciated it- I always went home
with gobs of money. It was cool getting getting paid to
learn how to play this thing I have great memories ...only in New York.
My approach to the instrument has
been to find the discipline & challenge to play numerous covers with
multiple chord changes in order to become more proficient
player as opposed to the improvisational -"shooting fish in a barrel-
tripped out dreamscapes that comes so natural to the instrument. I
enjoy playing old Elton John tunes on
the Egotar because of the wonderful chord inversions and familiarity
to the listener.
An earlier prototype employed a
copper pipe for the slide mechanism. Jackson: take your shoes off you little
Every few years I pull this
thing out, dust it off, work on it, improve it and play it until my brain
bleeds and I get burnt out and throw the thing in the corner.
far as this series of recordings goes, I came up with a set of familiar
cover songs and
perform them in an intimate, stripped down way, sort of the opposite of
the Johnny Skilsaw thing. The Egotar is great for making up songs but my
focus here was expanding as a player while producing some familiar
music that's easy to listen for a change. I intentionally
chose songs I believe to be great songs, many of which
have complex chord progressions and huge poly chords that seriously
hurt my brain.... resulting in my dreaming up
The Fractal Harp
